♦ Ex / ATEX directive European Certified TSTLP® Isolating Spark Gaps (ISG) are designed to apply for lightning protection equipotential bonding ( Connection) , like Cathodic protection, especially for the separated earthing systems using in Hazardous Areas with Safer Lightning Protection.

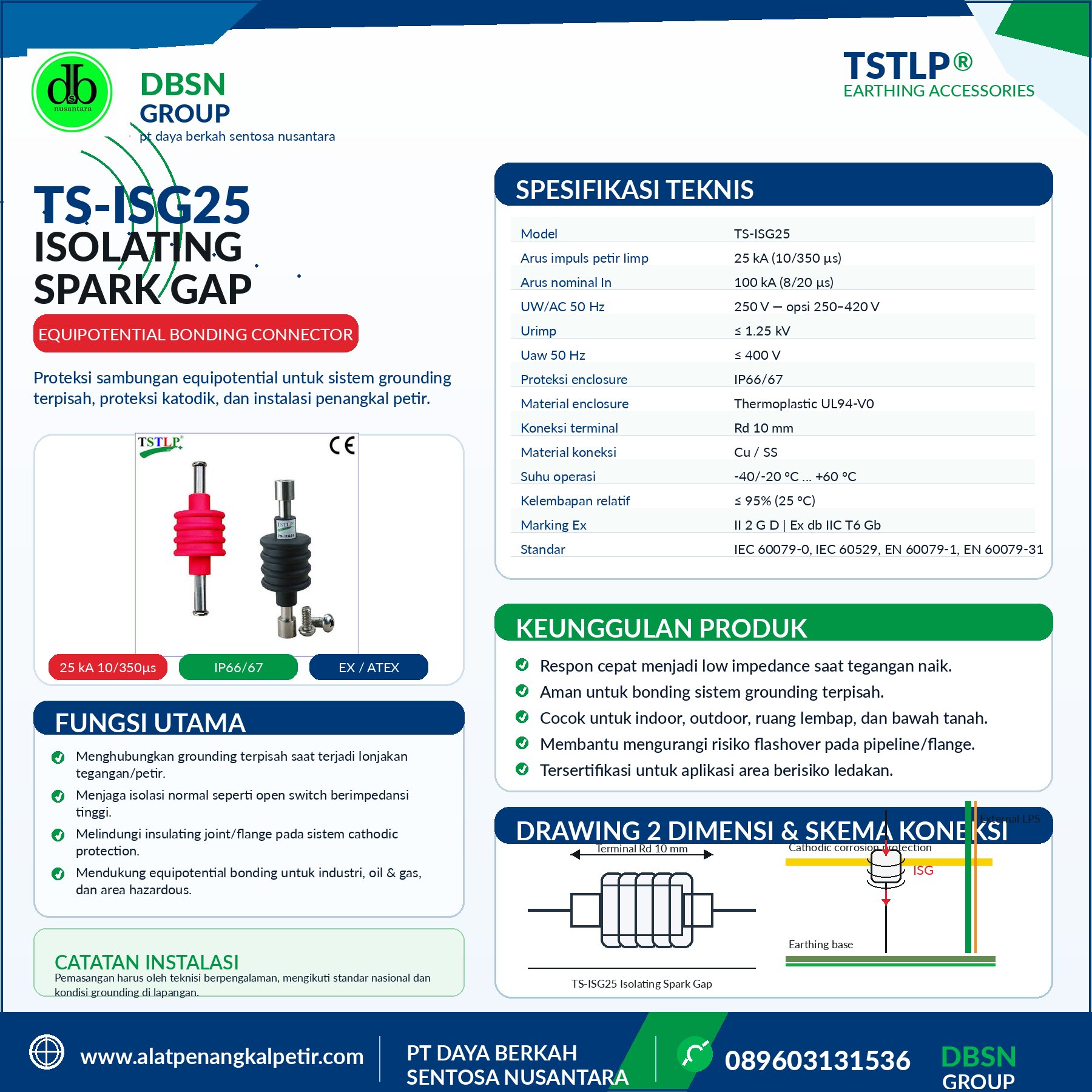

♦ Product Size of TSTLP Isolation Spark Gap
♦ Basic Circuit Diagram of TSTLP Spark Gap Arrester
♦ Technical Data of TSTLP Isolating Spark Gaps
| Model Number | TS-ISG25 | TS-ISG50 | TS-ISG100 |
| Lightning impulse current (10/350 µs) [Iimp] | 25kA | 50kA | 100kA |
| Nominal discharge current (8/20 µs) [In] | 100kA | 100kA | 100kA |
| Rated power-frequency withstand voltage (50 Hz) [UW/AC] | 250V | 250 V | 250 V |
| 100% Lightning impulse sparkover voltage [Urimp] | ≤ 1.25kV | ≤ 1.25kV | ≤ 1.25 kV |
| Power frequency sparkover voltage (50 Hz) [Uaw] | ≤ 400V | ≤ 400V | ≤ 400V |
| Operating temperature range [TU] | -40°C / -20°C…+60°C | ||
| Relative Humidity | ≤ 95% (250C) | ||
| Degree of protection | IP66/67 in accordance with lEC 60079-0 & IEC 60529 | ||
| Enclosure material | Black / Orange Thermoplastic UL94-V0 | ||
| Connection | Rd 10 mm | ||
| Material (connection) | Cu/SS | ||
| Verify Certificate by using code ECM 22 ATEX-B SD96 | http://certificate.entecerma.it/it/VerificaCertificato.aspx# | ||
| Standards Compliant & Certified | IEC 60079-0 IEC 60529 EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-31:2014 | ||
| Marked with
| II 2 G D Ex db IIC T6 Gb Ex tb IIIC T80°C Db | ||
♦ MAIN CHARACTER of TSTLP Isolating/Lightning Spark Gap for Lightning Protection
1, For indirect connection / earthing of functionally isolated parts of installations under lightning conditions
2, For bridging insulating joints, insulating (Pipeline) Flanges against damage caused by overvoltages, etc. in cathodically
protected pipe sections, to avoid failures, downtimes, and even leaks on pipelines and protect sensitive insulating
flanges against sparkover, which in turn to ensures smooth operation of the pipeline.
3, For safer installation in Ex zone 1 (gas) or 21 (dust)
4, Extremely low sparkover voltage & high alternating current withstand capability
5, Specially used for lightning equipotential bonding in Hazardous Areas
6, Approval according to ATEX directive 2014/34/EU, European Explosion-Proof Ex Certificate Available
| INSTALLATION INSTRUCTION Applied for in-doors & out-doors,in damp rooms as well as underground installation. |
| TSTLP Isolating Spark Gap Installation Diagram for Cathodic Protection (for reference) |
